Overview

Basic Info.

Model NO.	GYTA53
Connection Structure	SC
Material Shape	Round Wire
Allowed Lateral Pressure	>1000(N/100mm)
Allowed Tensile Strength	1000N<10000N
Core	2-144 Cores
Certification	RoHS, CE, ISO9001, CCC
Brand	OEM
Sheath Material	MDPE/HDPE
Loose Tube	PBT/PP
Inner Sheath	MDPE/HDPE
Max Tension(Long/Short)Term	1000/3000n
Crush Resistance(Long/Short Term)	1000/3000n
Storage Temperature	-20~+70 Centigrade
Optical Fiber	G652D/G655/
Characteristics	Special Tube Filling Compound
Diameter	14.0~20.7mm
Weight	200-315kg/Km
Transport Package	Fumigated Drum or Iron Drum as Customer Required
Specification	2-144 cores
Trademark	Takfly
Origin	Shenzhen, China
HS Code	8544700000
Production Capacity	100000km/Week

Product Description

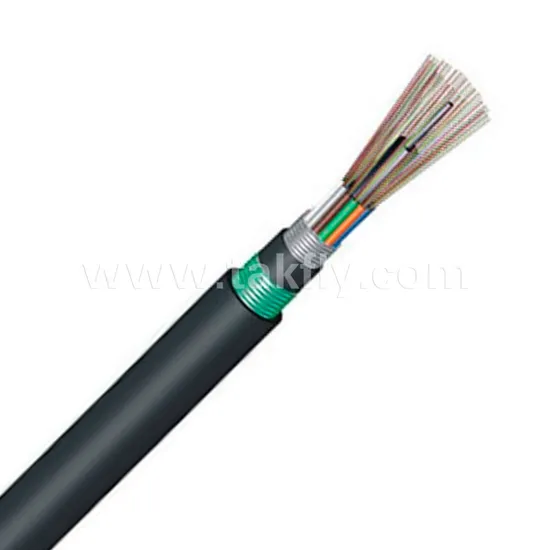

Fiber Optic Cable 2-144 Cores GYTA53 for Outdoor

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


Characteristics:

1.Good mechanical and temperature performance

2.High strength loose tube that is hydrolysis resistant

3.Special tube filling compound ensure a critical protection of fiber

4.Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

1. Steel wire used as the central strength member

2. Loose tube filling compound

3. 100% cable core filling

4. APL moisture barrier

5. PSP enhancing moisture-proof

6. Water-blocking material

Application:

1.Adopted to outdoor distribution;

2.Suitable for aerial, duct and direct buried;

3.Long distance and local area network communication.

Optical Fiber Characteristics:

Technical Data:
Cable Mechanical characteristic:

Product Description

		G.652.D	G.655	50/125μm	6205/125μm
Attenuation	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHz·km	≥200MHz·km
	@1300nm			≥1000MHz·km	≥600MHz·km
Numercial Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutt-off wavelengthλcc		≤1260nm	≤1480nm

Item	Contents	Value
Loose tube	material	PBT/PP
	diametert	Φ2.2mm
Central strength member	material	Steel wire/Steel wire with PE cover
	diameter	Φ2.0mm
Inner sheath	material	MDPE/HDPE
	thickness	1.7mm
Outer sheath	material	MDPE/HDPE
	thickness	1.8mm

Cable type	Diameter (mm)	Weight (Kg/km)	Max.tension (N)	Crush resistance (N/100mm)	Min.bending radius (mm)		Storage temperature (°C)
			long/short term	long/short term	Dynamic	Static
GYTA53-2~60	14.0	200	1000/3000	1000/3000	20D	10D	-20~+70
GYTA53-62~72	15.5	230
GYTA53-74~96	17.0	270
GYTA53-122~144	20.7	315

Q1: Are you a manufacturer?
A1: Yes, we are a manufacturer who has 6 factories (Shenzhen headquarters, Shiyan, Dongguan, Shandong, Leizhou, Chongzuo Guangxi), welcome to visit!

Q2: What's your MOQ?
A2: 1 pc/pair is ok, we don't have MOQ limited.

Q3: Can I put logo on the products?
A3: Yes,of course,we do OEM and ODM aslo.

Q4: What about your delivery time?
A4: For usual products, we keep stock, could ship 1-3days after receiving your advance payment.
For big quantity and special products, please check lead time with our salesperson

Q5: What your common shipping method?
A5: By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.

Q6: How about your product warranty time?
A6: Our products have 1/3/5years warranty for different product series.

Q7: Can I have a sample order?
A8: Yes. We welcome sample order to test and check quality

Q8: What is your terms of payment?
A8: Payment Terms: We mainly accept prepayment by Made-in-China, T/T Bank Transfer, Western Union, PayPal or Cash.
You can select the terms of payment which is more convenient for you.
